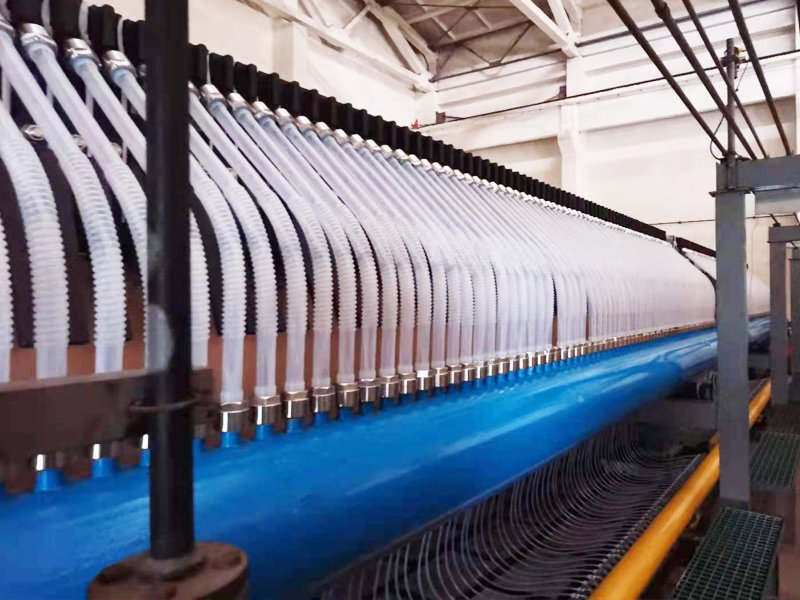

The SY series electric tank was first introduced to the market in 2011. This is a new type of filter press type bipolar ion-exchange membrane electrolyzer. It is also a brand-new zero-pole-pitch electrolysis cell, which can greatly reduce the squeezing of the ion membrane. Good resistance to reverse pressure difference. This series of electric tanks have been used in many units at home and abroad.
Type of chlor-alkali electrolyzer:
Type |
SY095 |
SY150 |
SY270 |
SY270W |
SY290 |
SY330 |
SY350 |
Circulation method between cathode and anode |
Natural circulation |
Natural circulation |
Natural circulation |
Natural circulation |
Natural circulation |
Natural circulation |
Natural circulation |
Cell electrode area |
0.95m2 |
1.5m2 |
2.7m2 |
2.72m2 |
2.9m2 |
3.3m2 |
3.5m2 |
Current density for Normal operating |
4.5-5KA/m2 |
4-4.5KA/m2 |
5.5KA/m2 |
5.5KA/m2 |
5.5m2 |
5.5KA/m2 |
5.5KA/m2 |
Max. current density |
5.5KA/m2 |
5KA/m2 |
6KA/m2 |
6KA/m2 |
6KA/m2 |
6KA/m2 |
6KA/m2 |
Cell fastening method |
Hydraulic or Screw fastening |
Screw fastening |
Hydraulic tightening |
Mandrel fastening |
Screw fastening |
Screw fastening |
Screw fastening |
Operating Instructions:
1, the voltage: <2.8—3.0v2, the current density: 3.0—6.0 kA/m2
3, or based on the operation condition
Quality of feeding brine:
No. |
Item |
Specifications |
1 |
NaCl |
300--320 g/l |
2 |
Ca+Mg |
<0.02 mg/l |
3 |
Sr |
<0.05 mg/l |
4 |
Ba |
<0.5 mg/l |
5 |
SiO2 |
<2.3 mg/l |
6 |
Al |
<0.1 mg/l |
7 |
I |
<0.2 mg/l |
8 |
Fe |
<0.1 mg/l |
9 |
Ni |
<0.01 mg/l |
10 |
ClO3 |
<15 mg/l |
11 |
SO4 |
<7 g/l |
12 |
TOC |
<10 mg/l |
13 |
SS |
<1 mg/l |
14 |
PH |
9--10 |
Applications:
Our Chlor-alkali electrolyzer is suitable for 30-32% caustic soda production.Our Chlor-alkali electrolyzer is suitable for the production of Sodium hypochlorite
The advantage of our Chlor-alkali electrolyzer:
1. A finer anode net can reduce the voltage of the cell and reduce the gas staying on the surface of the anode net2. The innovative V-shaped corrugated diversion structure can use the electrolyte gas lift function to make the electrolyte inside the electrolytic cell mix more evenly
3. Superior defoaming structure of gas-liquid separation box, complete foam breaking and small outlet pressure fluctuation
4. The superior spring structure on the cathode side has more than 30,000 contact points, which can make the current density distribution of the cathode network more uniform and reduce the voltage
5. Capable of resisting directional current
6. Different models of electric tanks can be produced according to customer needs
